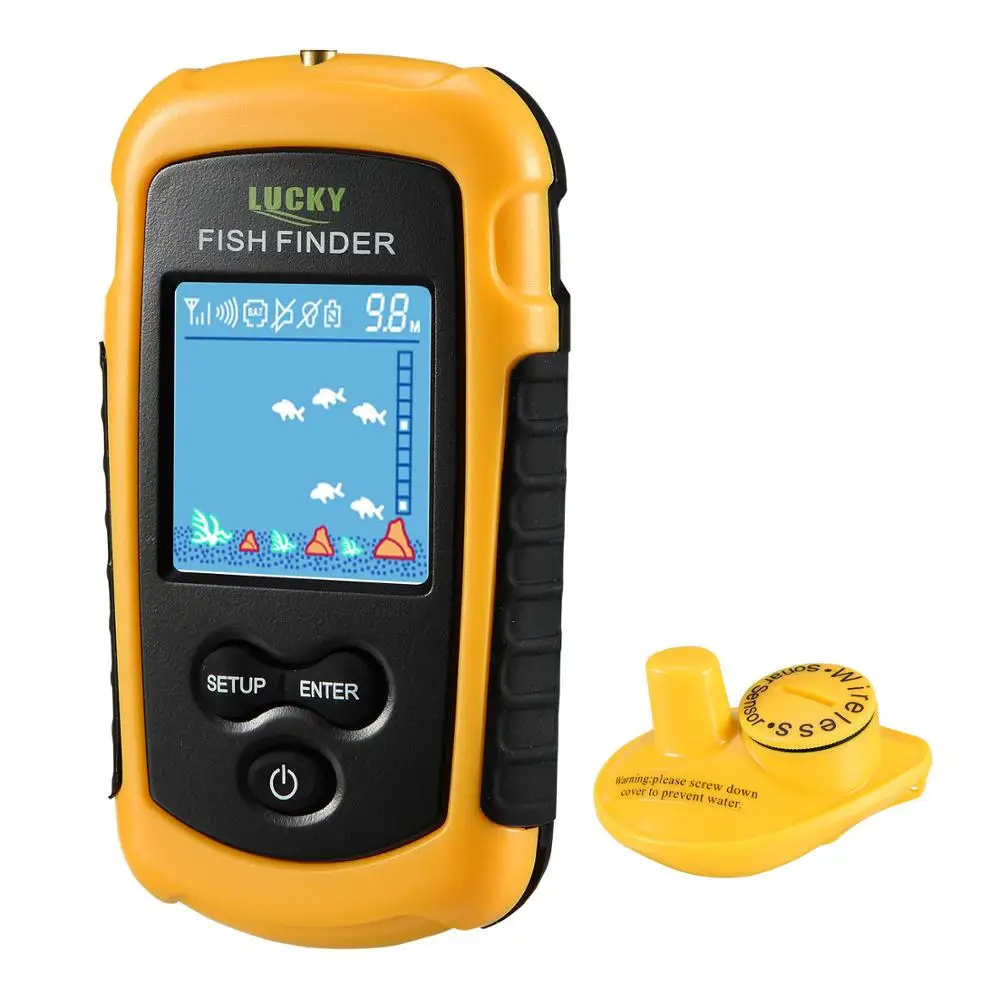

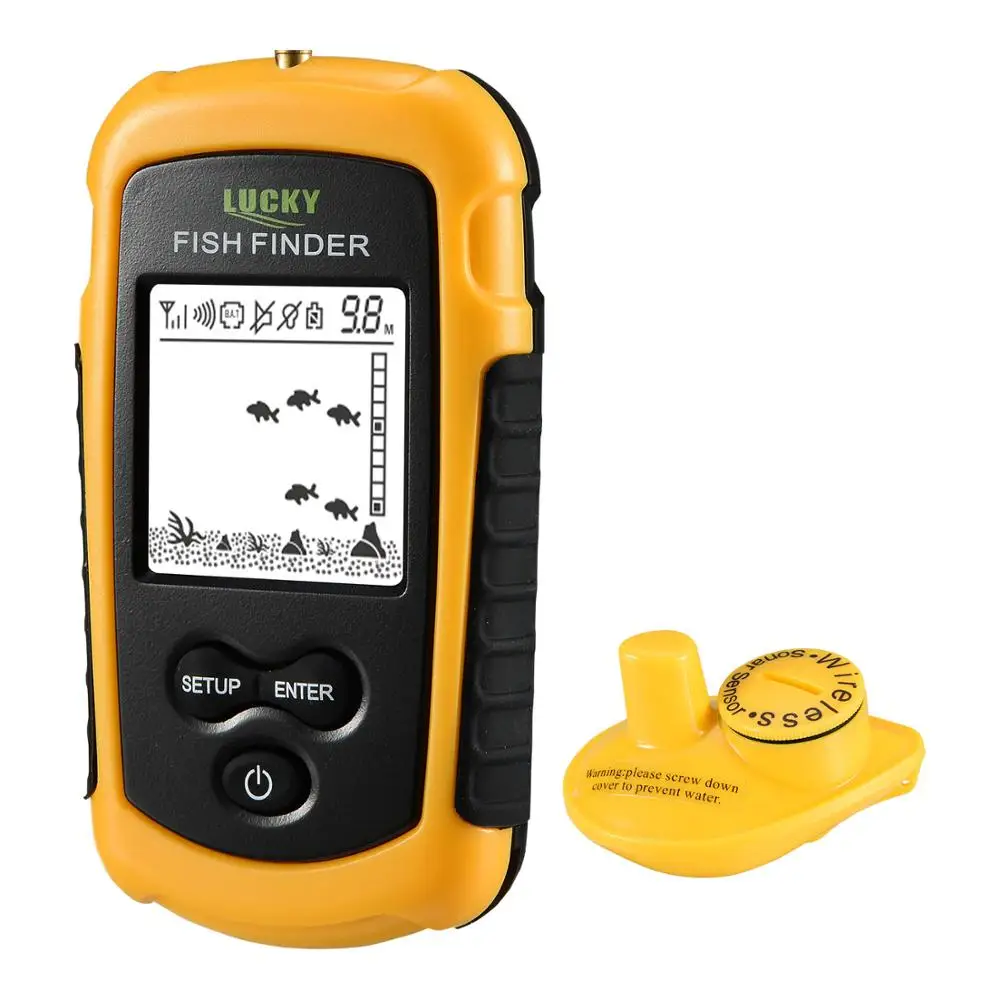

LUCKY-buscador de peces portátil telémetro inalámbrico aparejos de pesca electrónicos FFW1108-1 FFCW1108-1 400 pies 120m

PRODUCT SPECIFICATION OF FFW1108-1:

1) Display: 2inch TN/ANTI-UV LCD

2) Depth Capability: 130feet(40m)

3) Wireless Sonar: 90 degrees beam angle in 125Khz

4) Wireless operational Range: 400feet(120m)

5) Power Requirement: 4xAAA alkaline batteries(not included)

6) Wireless Sensor battery reauirement: one replaceable CR2032 battery

7) Waterproof design: level-4 (spray-water-proof)

8) Show water depth, fish location, and bottom grass & rock

9) User selectable sensitivity , depth units, and fish alarm setting

10) Wireless Sensor could shut down when it is out of the water

11) Operational Temperature: 14degF to 122degF(-10degC to 50degC)

FFW1108-1 has fish alarm

The sonar can detect water up to 100m,90degree beam angle in 125KHZ

This transducer can detect water up to 40m, sona wireless range is 120M

1. Sigal indicator
2. Sensitivity indicator
3 .Battery save on/off
4. Fish arlarm on/of
5. Set up key
6. Batter strenth indicator
7. Water depth indicator.
8 .Backlight on/off
9. Fish depth indicator
10.Enter key
11. Power on/off

How to use Lucky fish finder?

1.Tie it to the end of fishing line and cast it into the water

2.wireless sonar sensor send sound waves

3.returned echoes transmitted to the fish finder

Packaging:

1.Fish Finder*1pc

2.Wireless sonar sensor*1pc

3.Antenna *1pc

4.Manual *1pc

5.CR-2032battery*1pc

Attention:

1.Use fish finder in smooth and hard place (like water tank, swimming pool, water bucket, or fish pond) will cause repeatedly sonar reception, or the the detection can be inaccurate.
Please test in outdoor deep water.

2.Kindly remind that FFW1108-1 has only wireless mode, and you cannot match the sensor and monitor randomly.

3.FFW1108-1 not show fish size.


Manual:
English/German/Russian
